£599 – £699

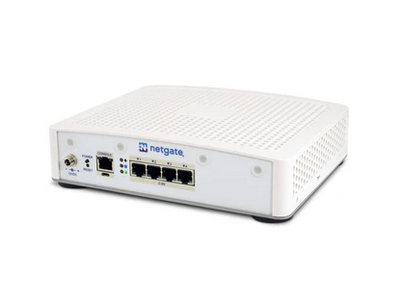

Netgate 4100

Netgate

The Netgate 4100 is ideal for pro-home, small/medium businesses, and edge deployments that require flexible port configurations to support 1 to 2.5 Gbps WAN capabilities across (2) RJ45/SFP Combo WAN ports and (4) 2.5 Gbps RJ-45 LAN ports

Clear
- +
SKU: N/A
Tag: Network

Description

  • Desktop form factor
  • Put on a desktop, wall, or rack
  • Silent operation (fanless)
  • Upgradeable storage (M.2 slots)
  • Handles demanding IDS/IPS needs
  • QuickAssist Technology & AES-NI
  • High Availability
  • 1 and 2.5 GbE Network Interfaces

Additional information

Weight 1.89 kg
Dimensions 41.91 × 29.21 × 7.62 cm
CPU

Intel® Atom® C3338R with QAT, 2-core @ 1.8 GHz
Memory

4 GB DDR4
Storage

,

Network Ports

(2) 1 Gbps (RJ45 copper / SFP fiber) Combo WAN ports

(4) 2.5 Gbps RJ-45 "direct" (unswitched) ethernet LAN ports
IPERF3 Traffic

L3 Forwarding: 8.15 Gbps

Firewall: 4.09 Gbps
(10k ACLs)

IPsec VPN: 960 Mbps
(AES-GCM-128 w/QAT)
IMIX Traffic

L3 Forwarding: 3.24 Gbps

Firewall: 1.40 Gbps
(10k ACLs)

IPsec VPN: 312 Mbps
(AES-GCM-128 w/QAT)
