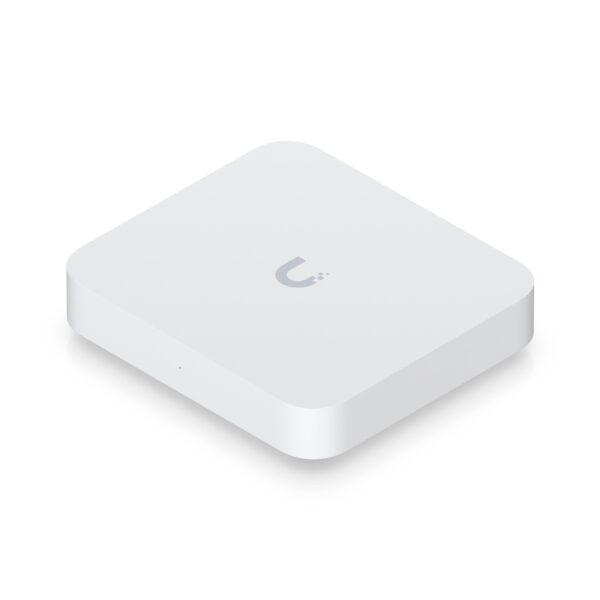

Ubiquiti UXG-MAX UniFi Gateway Max 2.5G Multi-WAN Advanced Router and Gateway – UK Plug

PLEASE NOTE THIS PRODUCT IS ONLY SUPPLIED WITH AN EU PLUG – NO UK PLUG SUPPLIED

Compact, multi-WAN independent gateway with full 2.5G support for high-performance networking at small-to-medium sites.

Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server
Up to 1.5 Gbps routing with IDS/IPS
(1) 2.5 GbE WAN port
(4) 2.5 GbE LAN ports, including (1) remappable to WAN
USB-C powered
Managed with UniFi Network 8.1.113 and later

Performance
WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Internet quality and outage reporting

Next-Generation Security
Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall

Advanced Networking
License-free SD-WAN
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport and Identity Enterprise VPN
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IPv6 ISP support

Dimensions
141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2″)

Weight
520 g (1.1 lb)

Enclosure Material
Polycarbonate

Resistance
IK04

Processor
Quad-core ARM Cortex-A53 at 1.5 GHz

Memory Information
2GB DDR4

Management Interface
Ethernet
Bluetooth

Networking Interface
LAN:
(4) 2.5 GbE RJ45 ports

WAN:
(1) 2.5 GbE RJ45 port

IDS/IPS Throughput
1.5 Gbps*
*Measured with iPerf3 on DHCP WAN. Performance may be reduced with PPPoE depending on ISP implementation.

Power Method
USB type C (5V/3A)

Supported Voltage Range
100–240V

Maximum Power Consumption
9.6W

LED
Ethernet
White: link/activity

Button
(1) Factory reset

Ambient Operating Temperature
-10 to 40° C (14 to 104° F)

Ambient Operating Humidity
5 to 95% noncondensing

Certifications
CE, FCC, IC
