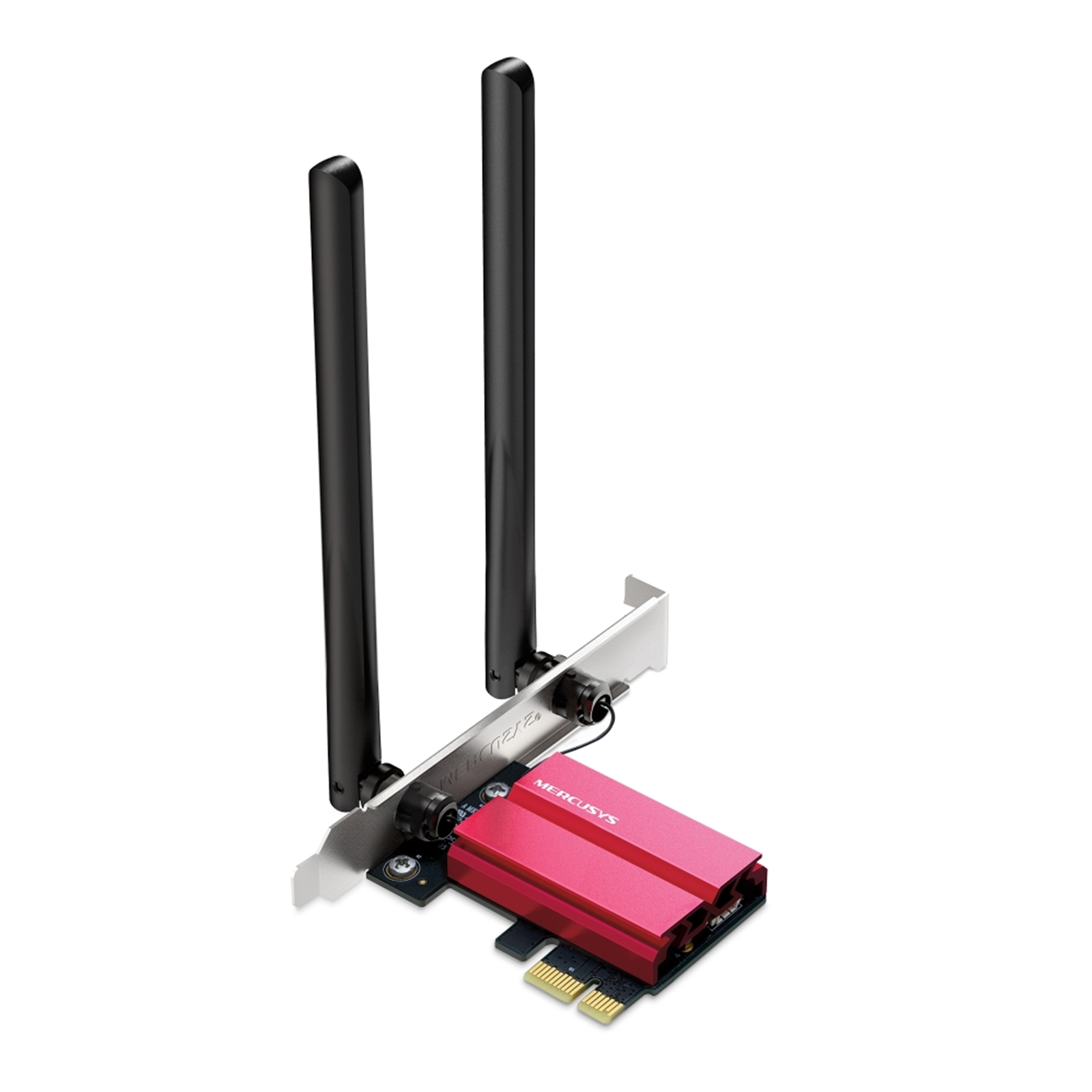

Mercusys MA86XE AXE5400 Tri-Band Wi-Fi 6E Bluetooth PCI Express Adapter

Mercusys AXE5400 Wi-Fi 6E Bluetooth 5.2 PCIe Adapter

Unstoppable Tri-Band Speed
Speeds up to 2402 Mbps (6 GHz) + 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)

WiFi 6E Standard
Expand to the clearer, broader 6 GHz band

Reliable Connections
The latest Intel Wi-Fi 6E chipset

Wider Signal Coverage
Two high-performance antennas

Bluetooth 5.2
The latest Bluetooth technology achieves faster speeds and broader coverage

Improved Security
The latest security enhancement, WPA3, provides enhanced protection in personal password safety

Backward Compatibility
Full support for 802.11ax/ac/a/b/g/n standards

Windows Compatible
Supported operating system: Windows 10, 11 (64 bit), and the 6 GHz is now available on Windows 11

Specifications

Wireless

Wireless Standards
IEEE 802.11 a/ac/ax 5 GHz
IEEE 802.11 b/g/n/ax 2.4 GHz

Signal Rate
2402 Mbps on 6 GHz
2402 Mbps on 5 GHz
574 Mbps on 2.4 GHz

Reception Sensitivity
6 GHz:
11ax HE160 MCS0:-86 dBm
11ax HE160 MCS11:-56 dBm

5 GHz:
11ax HE80 MCS0: -90 dBm
11ax HE80 MCS11: -59 dBm
11a 54Mbps: -77 dBm
11ac VHT80 MCS0: -92dBm
11ac VHT80 MCS9: -64dBm

2.4 GHz:
11ax HE40 MCS0: -91 dBm
11ax HE40 MCS11: -60 dBm
11g 54Mbps: -76 dBm
11n HT40 MCS7: -72dBm

Wireless Security
WPA-PSK/WPA2-PSK/WPA3-SAE

Hardware

Dimensions (W X D X H)
8.9 x 4.8 x 0.85 in (226.3 x 120.8 x 21.5 mm)

Antenna Type
2x Fixed High-Performance Omni-Directional Antennas

Others

Package Contents
AXE5400 Wi-Fi 6E Bluetooth 5.2 PCIe Adapter (MA86XE)
Bluetooth Header Cable
Quick Installation Guide
Resource CD

Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing

System Requirements
Supported operating systems include Windows 10, 11(64-bit)
